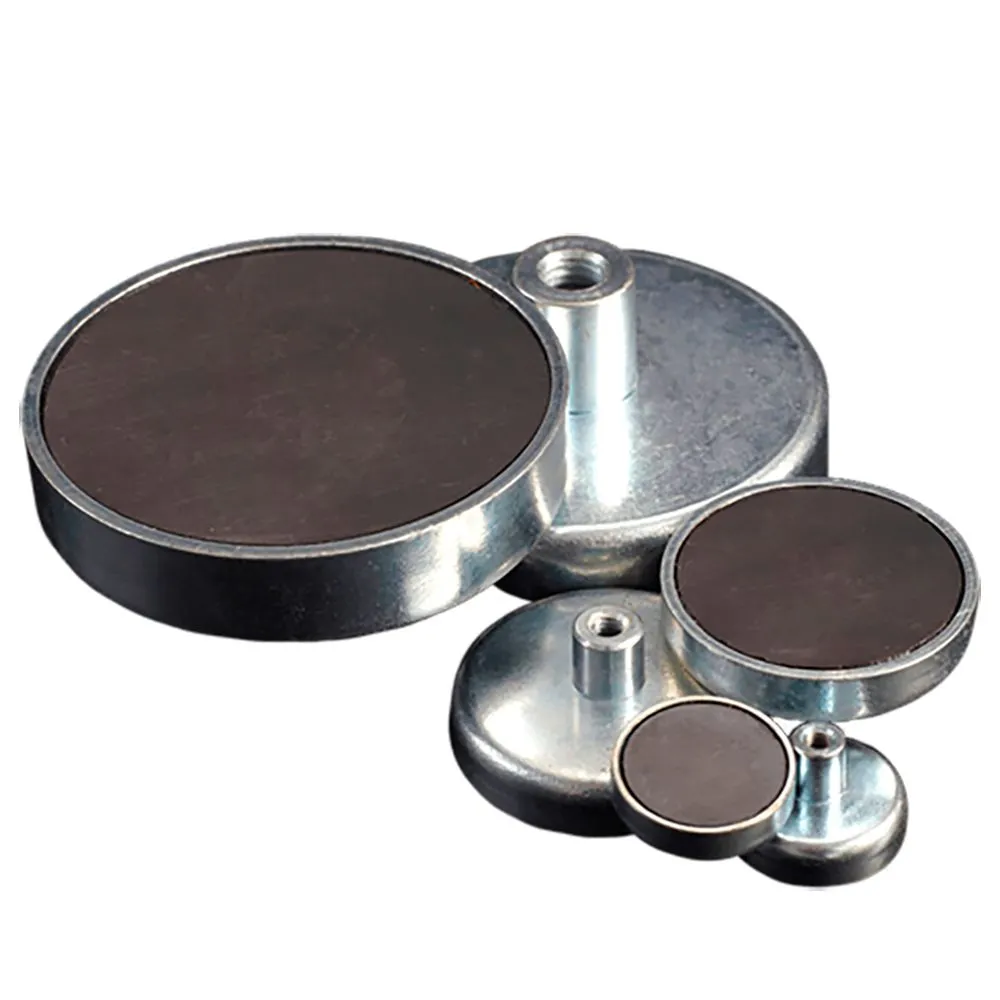

Introduction: Understanding Ceramic – Ferrite Pot Magnets

Ceramic – Ferrite Pot Magnets represent a highly effective and versatile category of magnetic solutions, engineered for demanding industrial and commercial applications. These magnets combine the inherent properties of ferrite magnets with the protective and force-enhancing benefits of a robust steel housing, making them an ideal choice where strong, durable, and reliable magnetic holding is required.

Key Characteristics and Engineering

The core of these magnetic assemblies utilizes ceramic (ferrite) magnets. Ceramic – Ferrite Pot magnets have excellent resistance to demagnetization and corrosion, but are fragile. This inherent resistance to demagnetization stems from their high coercive force, making them suitable for environments with varying temperatures or external magnetic fields without significant loss of magnetic strength. Their exceptional corrosion resistance is due to their ceramic composition, which is naturally inert and does not rust or oxidize like metallic magnets, making them ideal for outdoor, marine, or moist conditions without requiring additional protective coatings on the magnet material itself. However, the brittle nature of ferrite material necessitates careful handling and protection against direct impact.

The Role of the Steel Housing

While ferrite magnets offer excellent magnetic properties, their inherent fragility can be a limitation in applications involving mechanical stress or frequent impact. This is where the steel pot housing becomes crucial. Ferrite-ceramic magnets placed in the steel housing are protected against mechanical impacts and transfer the attraction force on the non-adhesive surface of the magnet to the adhesion surface, providing much more adhesive force. The sturdy steel casing not only safeguards the brittle ferrite magnet from chips, cracks, and environmental wear but also plays a vital role in optimizing the magnetic circuit. By strategically enclosing the magnet, the steel pot directs and concentrates the magnetic flux lines towards the contact surface. This design effectively creates a shielded magnetic circuit that significantly amplifies the holding power on the contact surface, often multiplying the magnet’s inherent strength several times. This ensures that the magnetic field is focused precisely where it’s needed, maximizing efficiency and providing a powerful, stable hold.

Versatility and Customization Options

The adaptability of Ceramic – Ferrite Pot Magnets makes them suitable for a vast array of applications across numerous industries. Ceramic – Ferrite Pot Magnets are available in models with different sizes, magnetic strengths, coatings and connection variants.

• Sizes: From compact units suitable for small fixtures or sensor applications to large, heavy-duty magnets designed for industrial machinery, a wide range of diameters and heights are available to meet specific space and force requirements. Standard sizes typically range from a few millimeters to several centimeters in diameter.
• Magnetic Strengths: The holding force can be precisely specified and manufactured, often ranging from a few kilograms to hundreds of kilograms, depending on the magnet grade (e.g., C5, C8), pot dimensions, and the quality of the surrounding steel. This allows for tailored solutions for tasks requiring either light holding or extremely robust attachment in various industrial settings.
• Coatings: Although the ferrite magnet itself is inherently corrosion-resistant, the external steel pot housing benefits from various protective finishes. Common coatings include durable zinc plating, lustrous nickel plating, or powder-coated finishes (e.g., epoxy paint). These coatings provide additional aesthetic appeal, enhanced corrosion protection for the steel, and can sometimes offer specific friction characteristics for the application surface, improving grip or reducing scratching.
• Connection Variants: To facilitate easy integration into diverse systems and mounting configurations, these pot magnets come with a variety of attachment options. Common connection variants include internal threads, external threaded studs, countersunk holes for flush mounting, through-holes for bolting, or stud mounts. These options ensure seamless and secure attachment to equipment, jigs, fixtures, signs, and other assemblies, providing exceptional flexibility in design and installation for engineers and manufacturers.

Applications and Advantages

These robust magnetic assemblies are extensively used in various sectors, including manufacturing, automotive, construction, marine, and retail. Typical applications include holding fixtures in workshops, magnetic bases for lights, sensors, and signage, material handling systems, lifting applications, securing doors and gates, and various clamping mechanisms. Their advantages include:

• Cost-Effectiveness: Ferrite magnets are generally more economical than rare-earth magnets (like Neodymium), offering excellent performance and a strong holding force at a lower price point, making them a budget-friendly solution for many industrial needs.
• Durability: The robust steel housing provides superior mechanical protection, significantly extending the lifespan of the magnet in harsh industrial environments prone to impacts or vibrations.
• Reliable Holding: The concentrated magnetic flux ensures a strong, consistent, and reliable holding force on ferrous surfaces, even under demanding conditions.
• Temperature Stability: Ferrite magnets maintain their magnetic properties remarkably well across a broad range of temperatures (typically up to 250°C), making them suitable for diverse operational conditions where other magnets might degrade.

Conclusion

Ceramic – Ferrite Pot Magnets stand out as an indispensable component for applications demanding durable, strong, and protected magnetic holding. Their unique construction, combining the intrinsic resilience of ferrite with the mechanical strength and flux-concentrating capabilities of a steel pot, delivers superior performance and longevity. For tailored solutions that perfectly match your operational needs and specific technical requirements, Please contact us. Our experts are ready to assist you in selecting the ideal Ceramic – Ferrite Pot Magnet for your application, ensuring optimal performance and value.
