Magnetic Gripper: Advanced Solutions for Automated Material Handling

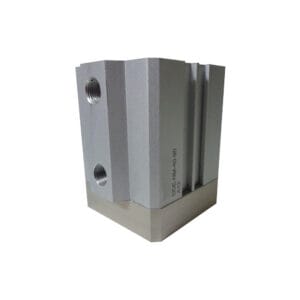

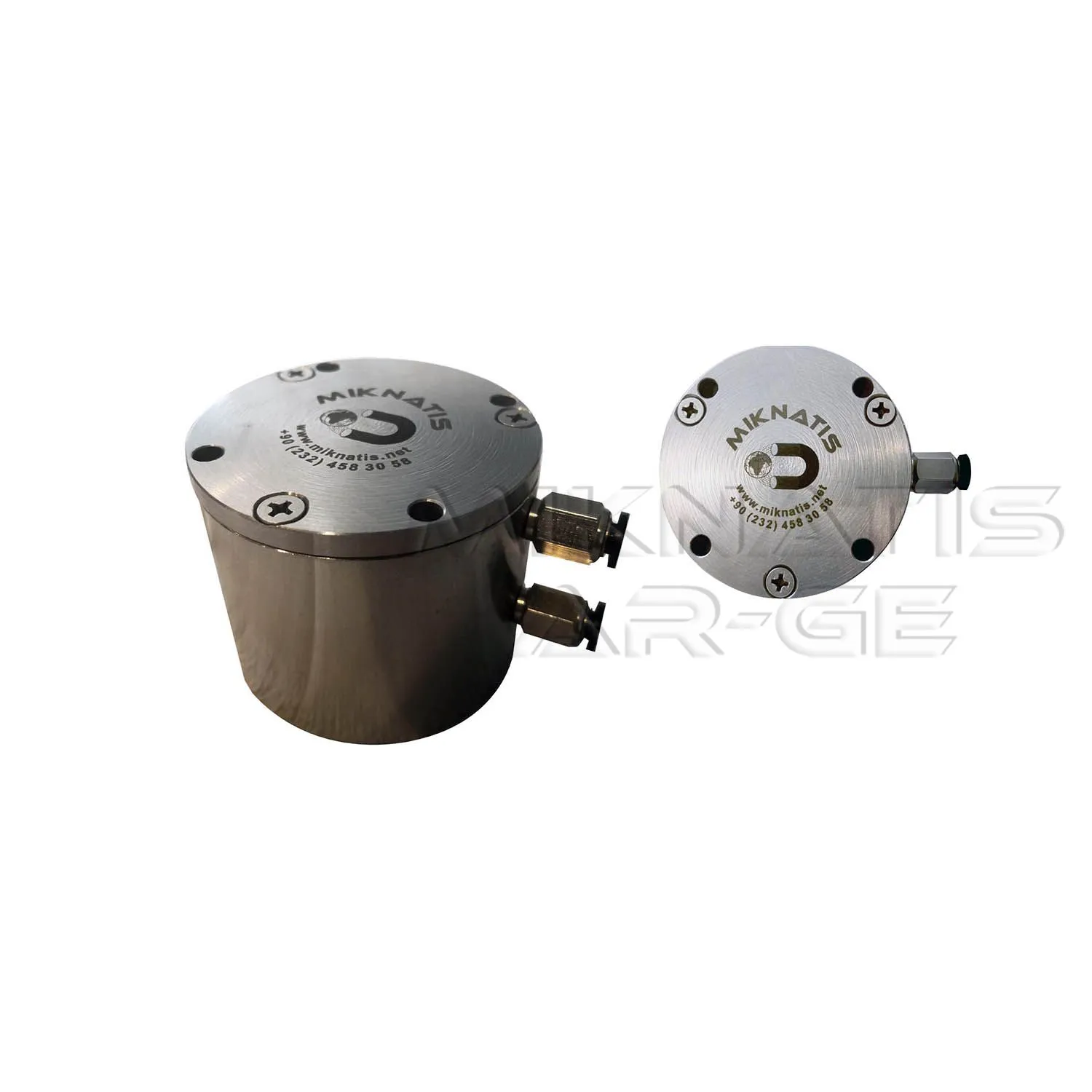

Magnetic Grippers represent a cutting-edge solution in industrial automation, designed to efficiently and safely handle ferromagnetic materials. These devices leverage the power of permanent magnets, which are pneumatically activated and deactivated, offering a unique combination of strength, precision, and energy efficiency. Their ability to lift significant loads within a remarkably compact footprint makes them indispensable for modern robotic applications and automated production lines.

Unlike traditional grippers that rely on continuous power or complex mechanical linkages, Magnetic Grippers are inherently energy-saving. Once activated, the magnetic field holds the workpiece without consuming any electrical energy, a critical advantage for operational costs and environmental impact. They are specifically engineered for robust performance in demanding environments, making them ideal for tasks involving the precise picking, placing, and positioning of various steel components.

Unrivaled Performance in Diverse Applications

These products are magnetically permanent and do not consume energy. They are ideal products for robot applications. They offer an ideal carrying capacity for picking, placing, and positioning 5-15 mm thick flat steel sheets, as well as pressed and perforated parts up to 10 mm thick. For applications involving very thin sheet metal under 5 mm, or for project-based requests with unique specifications, our technical team is available to provide tailored solutions and recommendations.

Furthermore, the design allows for scalability; according to customer requests, new products can be developed to handle much higher weights, extending their utility across a broader spectrum of industrial needs, from automotive manufacturing to general metal fabrication. This adaptability ensures that Magnetic Grippers can be integrated into highly specialized processes, optimizing efficiency and safety in material handling.

Working Principle:

The operational efficiency of Magnetic Grippers stems from their ingenious working principle. Thanks to the integrated valves, the system utilizes compressed air to control the movement of an internal permanent magnet assembly. This mechanical movement allows for the precise engagement and disengagement of the magnetic field with the workpiece, facilitating rapid and reliable operation.

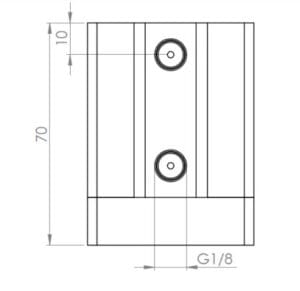

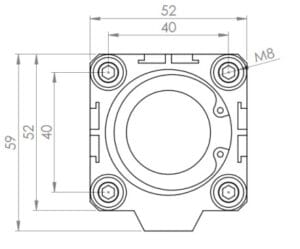

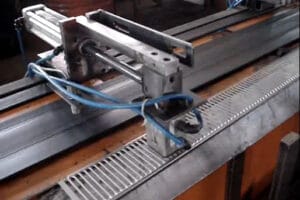

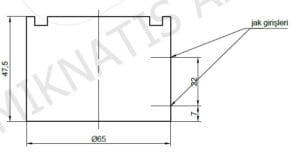

The gripper features a two-way air intake system for distinct control over its functions. The first air input activates the gripper, causing the permanent magnet to move into a position where its magnetic flux is directed towards the ferromagnetic workpiece, thereby holding it securely. This effectively “turns on” the magnetic force. The second air input then deactivates the gripper, shifting the magnet to an internal “off” position where the magnetic field is either shielded or redirected away from the workpiece, allowing for a clean and immediate release of the part. This precise pneumatic control ensures rapid and repeatable cycles, crucial for high-speed automation and assembly lines.

A significant safety advantage of this design is that Magnetic Grippers are not affected by power cuts. In the event of an electrical failure or loss of pneumatic pressure, the permanent magnet maintains its holding force on the workpiece, preventing accidental drops and ensuring the safety of both personnel and materials. This inherent fail-safe characteristic significantly enhances operational reliability and reduces risks in industrial settings.

Usage areas:

• Automated Pick-and-Place Operations: For automatic pick-up, precise placement, or accurate positioning of limited-weight steel (ferromagnetic-Fe-containing) objects. These grippers ensure high repeatability, accuracy, and speed, which are essential for assembly lines, sorting processes, and machine tending applications where consistent handling is paramount.
• Enhanced Process Automation: Critical for streamlining processes in sheet metal processing, automated production lines, and robotic material handling systems. They effectively replace manual labor in hazardous or repetitive tasks, significantly improving overall production efficiency, reducing lead times, and enhancing worker safety by minimizing human interaction with heavy or sharp metal parts.

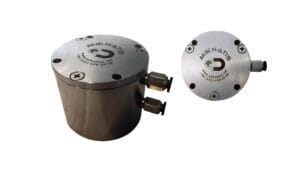

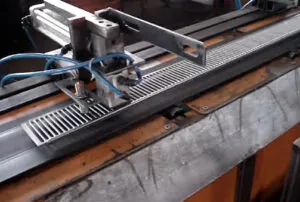

• Critical Selection Considerations: When choosing the Magnetic Holder for perforated sheet metal plates, it is imperative to ensure that the diameter of the magnet is larger than the hole diameter. This design principle guarantees sufficient surface contact for the magnetic field to effectively couple with the material, preventing slippage or insufficient holding force. Factors such as surface roughness, cleanliness, and the presence of coatings also play a vital role in optimizing magnetic coupling and ensuring reliable performance.

For ≤4 mm thin and sticky oily sheets, which often pose significant challenges due to their tendency for multiple sheet pickup (stacking effect) and reduced magnetic adherence, the Magnetic Gripper can be effectively utilized in conjunction with specialized solutions. For these specific applications, “Sheet Separator Magnetic Plates” are highly recommended. These separators are designed to mechanically or magnetically separate individual thin sheets, ensuring that only one sheet is picked up at a time, thereby maintaining production efficiency, preventing costly errors, and safeguarding equipment.

Key Features and Advantages: Driving Efficiency and Safety

• Versatile Material Handling: It is specifically produced for securely holding, transporting, and fixing a wide range of iron-based sheet and metal parts. This includes not only flat plates but also various profiles and irregularly shaped components, provided they offer sufficient contact area for effective magnetic engagement.
• Superior Occupational Safety: Offers significant advantages in terms of occupational safety due to its robust design with minimal external moving parts. This reduces wear and tear, minimizes maintenance requirements, and decreases the risk of mechanical failure compared to other gripping technologies like vacuum cups or complex mechanical clamps. The inherent fail-safe characteristic of maintaining magnetic holding force even without power further enhances safety.
• Reliable Pneumatic Operation: It works exclusively with compressed air for activation and deactivation, ensuring reliable performance in diverse industrial environments, including those with dust, debris, or fluctuating temperatures where electrical components might be vulnerable. Crucially, it continues to hold the part securely even when the power supply to the pneumatic system is cut off, providing an unparalleled level of safety and operational continuity.

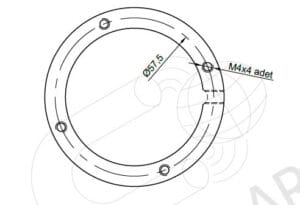

• Seamless Integration: Designed for easy integration into existing automation systems, it can be fixed to transport systems, robotic end-effectors, or custom chassis with standard mounting options, typically via 4 robust screw threads at the bottom, allowing for quick, secure, and precise attachment.
• Quality Domestic Production: Being domestic production, it ensures stringent quality control, readily available technical support, faster lead times for customization, and the flexibility for specific modifications to meet unique project demands and industry standards.

Selecting the Right Magnetic Gripper: Essential Considerations

To maximize the performance, reliability, and safety of Magnetic Grippers in your specific application, several critical factors should be carefully considered during the selection process:

• Material Type and Thickness: Absolutely confirm that the workpiece material is ferromagnetic (e.g., steel, iron). The gripper’s effective holding capacity is highly dependent on the material’s thickness, as magnetic flux penetration and saturation characteristics vary. Thinner materials may require higher-strength magnets or specialized configurations.
• Surface Condition: Clean, flat, and smooth surfaces provide the best magnetic coupling and maximum holding force. Oil, grease, rust, paint, or uneven surfaces can significantly reduce the effective gripping force, leading to potential slippage or inadequate handling.
• Load Weight and Distribution: Always select a gripper with a rated holding capacity that is significantly (typically 2x-3x) above the actual load weight, incorporating a robust safety factor. For large, irregularly shaped, or unbalanced loads, multiple grippers might be necessary to ensure even weight distribution, stable transport, and prevent deformation of the workpiece.
• Air Supply Requirements: Ensure that your compressed air system can consistently provide the necessary pressure and flow rates for reliable and rapid gripper activation and deactivation cycles. Inadequate air supply can lead to slow response times or incomplete engagement/disengagement.
• Environmental Factors: Consider the operating environment’s specific conditions, such as ambient temperatures, humidity levels, and the presence of dust, debris, or corrosive agents, which might influence the choice of gripper model, materials, or require additional protective measures for optimal longevity.

Conclusion: The Future of Ferrous Material Handling

Magnetic Grippers stand as a testament to innovative engineering in industrial automation, offering a robust, safe, and energy-efficient method for handling ferromagnetic materials. Their unique combination of permanent magnetism and precise pneumatic control delivers repeatable, and secure operations, even in challenging environments or during unexpected power interruptions. By significantly enhancing occupational safety, improving production efficiency, and offering versatile application possibilities across various industries, these grippers are an indispensable tool for companies aiming to optimize their material handling processes and achieve higher levels of automation. For specific project requirements or to explore custom solutions tailored to your unique operational needs, we encourage you to contact our expert technical team for comprehensive support and guidance.
