Double Wall Magnetic Filters: Ensuring Purity and Process Integrity

In various industrial processes, maintaining the purity of fluids and semi-fluids is paramount, not only for product quality but also for the longevity and efficiency of production equipment. The magnetic filter is used in fluids or semi-fluids with different viscosity, such as chemical mud, paint, sugar, oil, jam, chocolate, etc., to remove ferrous contents and other ferromagnetic particles to keep the material clean and protect the downstream production equipment. This essential separation technology prevents costly damage, reduces downtime, and ensures that final products meet stringent quality standards.

The Critical Role of Magnetic Filtration in Industrial Processes

Ferrous contamination, often originating from wear and tear in machinery, rust, or raw material impurities, can severely compromise product integrity. In the food and beverage industry, for instance, even microscopic metal particles can pose health risks and lead to product recalls. In chemical processing, such contaminants can act as catalysts for unwanted reactions or clog sensitive equipment. Magnetic filters provide an effective, non-intrusive solution by physically attracting and holding these particles, allowing the clean product to pass through. This proactive approach safeguards delicate components like pumps, nozzles, homogenizers, and heat exchangers from abrasive damage, thereby extending their operational lifespan and reducing maintenance costs.

Understanding Double Wall Magnetic Filters: Enhanced Thermal Control

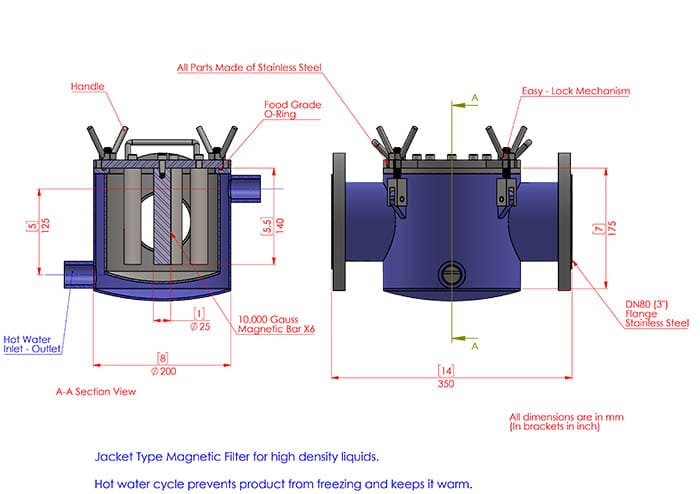

While standard magnetic filters excel at particle removal, certain applications demand an additional layer of process control, particularly regarding temperature. This is where the innovative design of Double Wall Magnetic Filters comes into play. Double Wall Magnetic Filters have an interlayer that can be filled with water, oil and other thermal insulation materials to meet the heat preservation requirements of liquid or high density liquids. This unique double-wall construction allows for precise temperature management, preventing highly viscous liquids from solidifying or becoming too thick to flow efficiently. By maintaining an optimal processing temperature, these filters ensure consistent product viscosity, prevent crystallization, and facilitate smooth material transfer. It is an ideal choice for chocolate, jam, syrup or other high density liquids, as well as waxes, adhesives, and other temperature-sensitive products where maintaining fluidity is crucial for continuous production and product quality.

Advanced Magnetic Rod Technology for Superior Separation

The core of any magnetic filter lies in its magnetic rods, and Double Wall Magnetic Filters feature robust and highly efficient designs. The main structure of the magnetic liquid holder filters is fixed and removable magnetic rods at the same time on the device. This configuration allows for both continuous filtration during operation and easy access for cleaning and maintenance. When liquid or semi-fluid flows from these magnetic rods, small ferrous contents are retained on the surface and the purity of the product is ensured by regular cleaning. The design ensures maximum contact between the product stream and the powerful magnetic field, maximizing the capture efficiency of even micron-sized ferromagnetic particles. The choice of magnetic material is critical for performance: These magnetic rods are made of Neodymium rare earth magnets or ceramic – ferrite magnets according to the usage area.

• Neodymium Magnets: Known for their exceptional strength, Neodymium (NdFeB) magnets offer superior magnetic force, making them ideal for capturing very fine or weakly magnetic particles. They are highly effective in applications demanding the highest levels of purity.
• Ceramic (Ferrite) Magnets: While generally less powerful than Neodymium, ceramic magnets offer excellent temperature stability and corrosion resistance, often at a more economical cost. They are suitable for applications where extremely high magnetic strength isn’t the primary concern but robustness and heat tolerance are important.

Both types of magnets are typically encased in high-grade stainless steel (e.g., SS304 or SS316L) to ensure hygiene, durability, and resistance to corrosive media, making them suitable for stringent industrial environments, including food-grade applications.

Operational Efficiency and Maintenance

The design of Double Wall Magnetic Filters prioritizes ease of operation and maintenance. The removable nature of the magnetic rods simplifies the cleaning process; operators can quickly extract the rods, allowing collected ferrous particles to be wiped or rinsed off. This swift cleaning procedure minimizes downtime and ensures that the filter consistently operates at peak efficiency. Furthermore, the robust construction, often utilizing polished stainless steel, ensures excellent hygiene and resistance to contamination, aligning with strict industry standards. Installation is also straightforward, with various connection types available to seamlessly integrate into existing pipeline systems.

Key Benefits and Advantages

• Enhanced Product Purity: Effectively removes ferrous contaminants, ensuring a cleaner, safer, and higher-quality end product.
• Equipment Protection: Safeguards sensitive downstream machinery from abrasive damage, extending lifespan and reducing repair costs.
• Optimal Viscosity Control: The double-wall design maintains ideal temperatures for high-viscosity liquids, preventing solidification and ensuring smooth flow.
• Increased Process Efficiency: Reduces blockages and allows for continuous production of temperature-sensitive materials.
• Reduced Downtime: Easy-to-clean, removable magnetic rods facilitate quick maintenance, minimizing interruptions to operations.
• Versatility: Suitable for a wide range of fluids and semi-fluids across diverse industries.

Conclusion

Double Wall Magnetic Filters represent a sophisticated solution for industries requiring both superior ferrous contamination removal and precise temperature control for their products. By combining powerful magnetic separation with advanced thermal management capabilities, these filters offer an unparalleled level of process integrity and product quality. For manufacturers dealing with high-density, viscous, or temperature-sensitive liquids, investing in Double Wall Magnetic Filters is a strategic decision that leads to enhanced operational efficiency, reduced maintenance, and ultimately, a consistently higher quality output.
